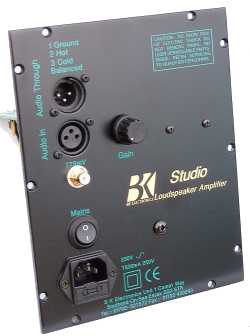

PP50 50W RMS Amplifier Panel

FEATURES
  • 50W R.M.S. Into 8 Ohms
  • 775mV I/P for rated output
  • Toroidal Transformer
  • Short Circuit Protection
  • D.C. Speaker Protection
  • Balanced I/P (Readily unbalanced with onboard switch)
  • Link through sockets for daisy chaining more than one speaker
  • Indented gain control
  • I.E.C Fused Mains Inlet
  • Compatible with Hi-Fi amps,CD Players, Studio Mixers and Computers Etc.

No Longer Available


The PP50 Studio Loudspeaker Amplifier is designed to meet the exacting demands of the professional market but has the quality of sound reproduction normally associated with Highend Audio. Although having a small footprint, it has a full 50W R.M.S. output that makes a useful addition to an existing loudspeaker cabinet or custom made loudspeaker enclosures. The panel is designed to fit flush through a cutout approximately 170mm x 150mm in the rear of a Loudspeaker cabinet. Individual artwork for OEM users.

Specifications

Power
50 Watt R.M.S.
Bandwidth
20 - 25,000 Hz
Damping Factor
>200
Distortion
0.05%
S/N A Weighted
>100dB
Mains Supply
230V AC 50-60 Hz
Weight
1.4Kg
Size
H205 W165 D85mm
