Modules


Ref. No  Description Price (Inc. UK V.A.T.)
BSBP 200/4 200W Active Sub Bass Panel 4 Ohm Version
£152.75
BSBP 200/8 200W Active Sub Bass Panel 8 Ohm Version
£152.75

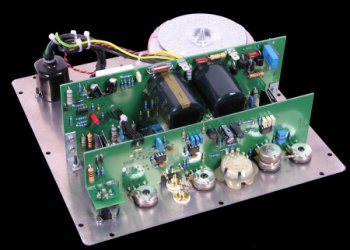

The BSBP 200 is the latest in the range of sub bass panels from BK. It shares the same features as its sister panel the BSBP 100, except for more power and a continuously variable phase control. This panel is capable of driving difficult loads with ease. Because it is airtight it is simple to incorporate it into your cabinet without the need of a sealed box. Ideal for fitting into enclosures down to 1 cu ft.

  • Phase Shift Continuously variable 0 - 180Deg
  • 200W R.M.S. Into 8 Ohms
  • 200W R.M.S. Into 4 Ohms
  • High and low level inputs with separate gain controls
  • Upper roll off is continuously variable between 40Hz and 120Hz
  • Filter Bypass switch, for use with sub outs from processors
  • Airtight construction
  • DC Protection
  • Short Circuit Protection
  • A.S.P. Automatic Speaker Protection
  • 4mm Thick Aluminium Front Panel

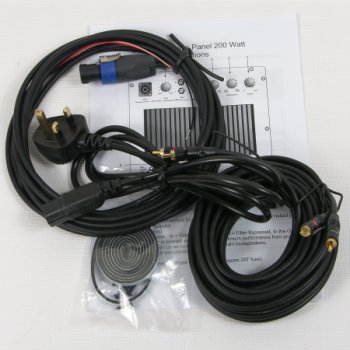

  • Complete with Mains, High Level and Low Level Leads



Qty : BSBP200/4
Checkout

Qty : BSBP200/8
Checkout

Specification

Output Power
BSBP 200/4
210W RMS Into 4 Ohms
BSBP 200/8
205W RMS Into 8 Ohms
Frequency Response
Filtered
10Hz to 120Hz
S/N
100dB A Weighted
THD
0.05% Typ
Low Level Sens
150mV
High Level Sens
1.5V
Size
H254 x W254 x D95mm
Weight
5Kg
Mains Voltage **
110/230V - 50/60Hz
