Celestion
Ref. No  Description Price (Inc. UK V.A.T.)

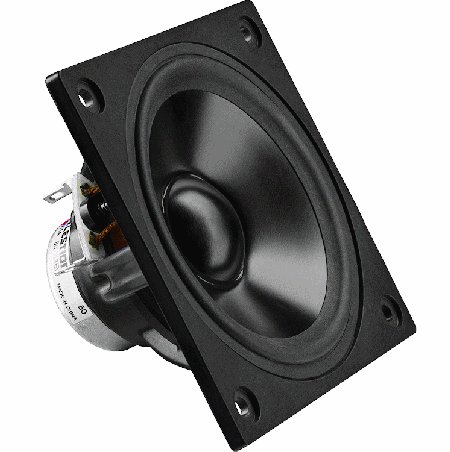

AN3510 Celestion AN3510
£34.95

AN3510

Qty : Celestion AN3510
Checkout

Credit Card Payment

Visa MC Maestro

Using their market-leading experience in the design of high- performance, small-format professional audio drive units, Celestion has created an all-new range of compact and lightweight loudspeakers that are ideally suited to many sound reinforcement applications.

These drivers have been optimized using Finite Element Analysis (FEA) to give a wider dispersion characteristic than conventional loudspeakers of this size. In addition, they feature a space-efficient square chassis profile allowing them to be positioned more closely to each other for improved coupling.

With Celestion's Compact Array Drivers, systems designers are now able to build into their products some of the principal advantages offered by line array designs: a more even distribution of the acoustic signal and the ability to project sound over greater distances.



  View The N3510 Animation

Features

  • Compact and lightweight, full-range neodymium loudspeakers
  • Advanced Finite Element Analysis techniques used for acoustic, mechanical and electromagnetic modelling
  • Ideal for applications such as portable line arrays where actively controlled wavefront (beam steering) is used
  • Delivers wider dispersion to higher frequencies than many equivalent compact, full-range drivers on the market
  • Chassis purpose-designed for maximum free air movement, with square mounting frame to facilitate close coupling of multiple units
  • Stiff and light aluminium cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
  • Half roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion
  • Designed to be weather resistant for outdoor applications


General Specifications

Small Signal Parameters
Nominal diameter
88mm/3.5in
Power rating1
35Wrms
Nominal impedance
Sensitivity2
87dB
Frequency range
98Hz-18.5kHz

Voice coil diameter


25mm/1.0in
Chassis type
Glass reinforced ABS
Magnet type
Neodymium
Voice coil material
Round Copper
Former material
Polyimide
Cone material
Aluminium
Surround materia
Elastomer
Xmax3
1.25mm/0.04in
Gap depth
4mm/0.14in
Voice coil winding width
6.5mm/0.23in
Sd
38.48cm2/5.98in2
D
70mm/2.76in
Fs
98Hz
Mms
3.37g/0.12oz
Qms
6.59

Qes


0.66
Qts
0.67
Re
5.73Ω
Vas
1.3lt/0.046ft3
Bl
4.5Tm
Cms
0.62mm/N

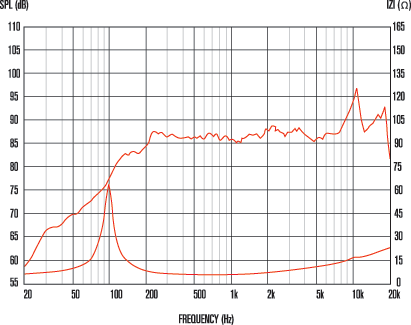

Mounting Information 8Ω Frequency Response
Overall depth
38.48cm2/5.98in2
Overall size
70mm/2.76in
Cut-out diameter
98Hz
Fitting
3.37g/0.12oz
Mounting PCD range
6.59

Unit weight


0.66
  1. Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
  2. Measured on axis at 1W, 1m in 2Π anechoic environment.
  3. Xmax derived from: (voice coil winding width-gap depth)/2.
FR
