Audio Drive
Ref. No
Ref. No Price (Inc. UK V.A.T.)
FR100
Marcato FR100
£99.99 Per Pair

FR100

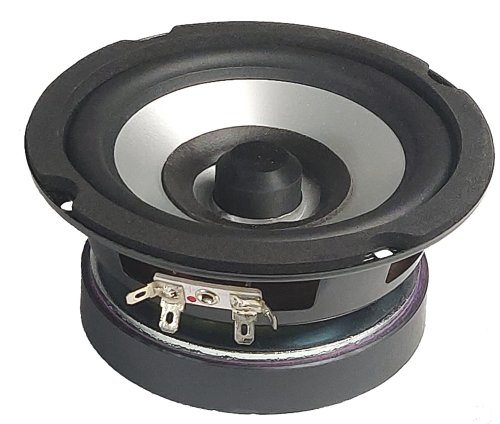

The Marcato FR100 is a cost effective full range speaker with a chassis of 130mm and a speaker piston diameter of 100mm. The upper frequency range extends up to 17kHz and as there is no crossover required the soundstage is open and dynamic. When using a MLTL design like the one HERE you can get a full nine octave, 30Hz right up to 17kHz



Visa MC Maestro
Qty : Marcato FR100
Checkout





Technical Details

Dimensions
130.5 mm Dia
Weight
970 g
Power Handling
100W Peak Max
Resonance
55Hz
Frequency Resp.
55 hz - 17 kHz
Nominal Impedance
8 Ohms
Driver Piston Dia.
98 mm
Magnet Weight
442g

Thielle Small Parameters

Equivalent Volume Vas
10.04 Litres
Affective Piston Area Sd
75.5 Cm2
Dc Resistance Re
6.7 Ohms
Movving Mass Mms
7.0 g
Resonant Frequency Fs
55 Hz
Suspension Comp. Cms
1.2427 mm/N
Qes
0.511
Qms
1.87
Qts
0.401

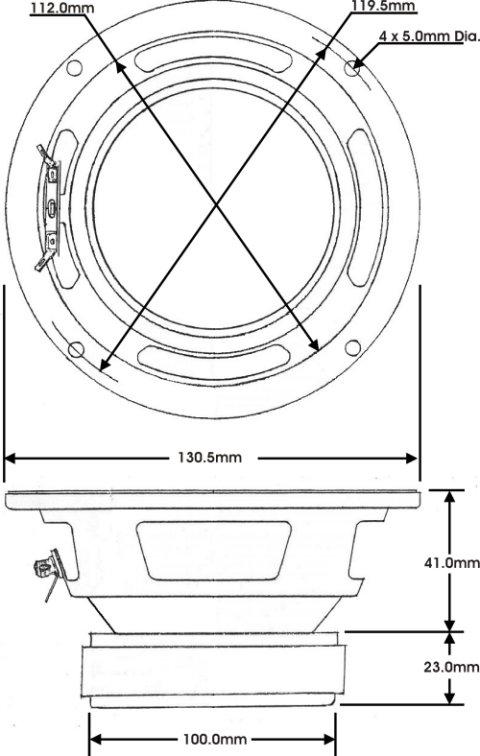

DimensionsDims
