| Designed
And Manufactured In The UK |
|
|
 |
|
Click
here for the user manual |
|
|
| |
|
Only
£199.95
|
| Twin
Filters. One
for Music &
one for Movies |
|
|
| |
|
|
|
Dual
Digital Displays
The

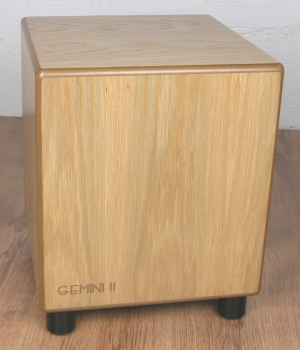

Gemini 1 is an extremely compact subwoofer designed to add depth
to both Hi-Fi and AV system. The long stroke 8" 200mm drive
unit produces deep bass but it is fast and agile enough to enable

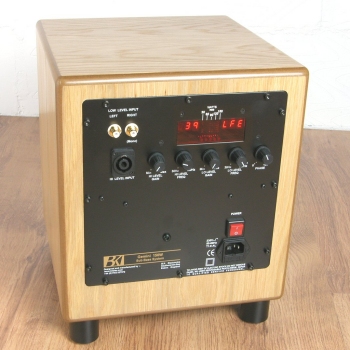

it to keep in time with demanding musical content. The amplifier
panel is brimming with control and flexibility and is amongst the
very few subs available today that can boast independent filtering
on both the High and Low level inputs and ease of setting up via
twin frequency displays and Vu metering.
|
|
|
| |
|
|
| |
 |
Features:
- 2
Years Warranty
-
Independent high and low level inputs with separate gain and frequency
controls to enable the use of Hi-Fi and AV connections simultaneously.
- True
150W (Continuous) discrete bipolar technology DC coupled
- Twin
frequency displays shows the upper roll off frequency of the twin
filters
-
5 Led Vu meter shows relative power level
- Internal
filter bypass switch on Low Level Input
- Variable
cut off frequency 40Hz - 120Hz
- Gold
Plated RCA Phono's
- 0
- 180 Deg phase switching
-
IEC power input socket - no captive leads for installation
flexibility
-
Hand-built in Great Britain
|
|
| |
|
|
| Specifications: |
|
|
| System
Type: |
|
Infinite
Baffle Sub-bass system with on board amplification and active
filtering. Fully optimised enclosure manufactured from critically
damped 18mm 3/4“ MDF. |
|
|
|
| Drive
Unit : |
|
200mm
8“ high-efficiency unit. Extreme long stroke composite fibre
cone driven by a 2 ” 50mm voice coil. Heavy duty steel chassis
and fully optimised stacked magnet system. |
|
|
|
| Amplifier: |
|
150W
RMS DC coupled bi-polar. |
|
|
|
| Inputs: |
|
High
Level 100K ohm unbalanced via Neutrik Speakon connector Low
level 10K unbalanced via gold plated RCA connectors. |
|
|
|
| Power
Req.: |
|
230V
/ 50Hz |
|
|
|
| Dimensions: |
|
324H
x 280W x 292D mm |
|
|
|
| Weight: |
|
12.4
kg |
|
|
|
|
|
|
| |
|
|
|
|
|
The
Gemini 1 comes equipped with simultaneous high and low level mixing
capabilities and separate frequency controls and display's. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Accessories |
|
The
Gemini comes complete with the following "FREE" accessories
|
|
Spikes
8mm
|
Mains
Lead
|
5M
High Level Lead
|
5M
Phono to Phono
|
|
|
|
|
|
|
Worth
£4.00
|
|
Worth
£29.95
|
Worth
£10.00
|
|
| |
