Anti Mode Dual Core


Price £680.00 Including carriage
The Multi Award Winning Anti-Mode Dual Core

The Absolute Sound Magazine Sep/2012

"it is Alladins Genie except that you get a lot more than three wishes!"







"Get a cuppa, because this digital Swiss Army Knife has something of interest for everyone and it's going to take a while to explain it!"

Click on the image above to see the full review


Product Manual




Qty : Anti Mode Dual Core Checkout £680.00


Speaker-room interaction is typically the most important performance-limiting factor of any high-end audio system. Every listening space introduces errors that can be in the magnitude of dozen decibels or even more. These errors are most pronounced at the bass and lower midrange regions, where the classic acoustic treatment loses its effectiveness.

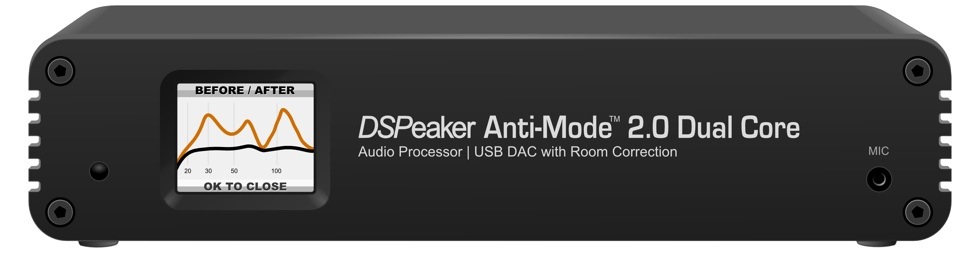

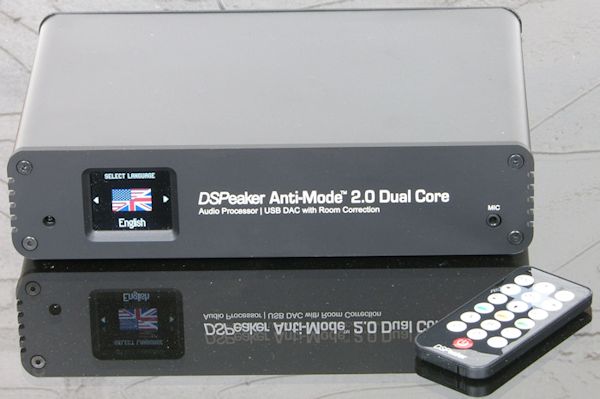

Anti-Mode 2.0 Dual Core is DSPeaker's new generation loudspeaker optimization system capable of perfecting the acoustic performance of any full-range stereo audio system. It is based on our new Anti-Mode 2.0 algorithm which refines the popular, award-winning Anti-Mode algorithm even further.


Features

  • New, improved Anti-Mode 2.0 automatic room correction algorithm
  • Can be used as a high quality DAC
  • Supports USB audio as well as S/PDIF input/output via optical toslink
  • Dual balanced ADCs and DACs (one per input channel!) to deliver the highest level of audio performance that meets the expectations of most demanding audiophiles
  • Can be used as a high quality pre-amp with remote volume control
  • Extensive sound customization options, including quick house curve design tool, linear-phase full spectrum tilt, several parametric EQs etc
  • Supports several sound profiles (e.g. independent ”sweet spots” and/or equalizer settings), quickly switchable with the remote controller
  • Friendly graphical user interface, very easy to set-up and operate
  • Ability to measure and display room responses on a built-in 262k-color TFT display
  • ”Pure digital” mode using S/PDIF input & output: signal is processed in the digital domain all the way (S/PDIF output resolution is independent from input)
  • Digital signals are re-aligned for jitter-free operation
  • Versatile connectivity: insert Anti-Mode 2.0 Dual Core between your existing pre-amp and power amplifier or powered speakers or utilize the processor loop or tape loop of your integrated amplifier (or use it as a standalone DAC / preamp!)


Digital Specifications Analog specifications

DSP Cores:

  • 1 x VS1000 (GUI&USB)
  • 2 x VS8053 IceDragon (Audio)

Processing:

  • 40-bit, 2-channels

DSP Filters:

  • Anti-Mode 2.0 Multi-Rate (FIR & IIR)
  • House Curve filter
  • Linear-Phase Tilt
  • Parametric EQs
  • Adjustable Infrasonic
  • Adjustable cross-over

  • Dynamic Range: > 108dB
  • Volume Control Steps: 0.5dB
  • Input Sensitivity XLR: 1.35 V(RMS)
  • Input Sensitivity RCA: 1.65 V(RMS)
  • Output Voltage Unbalanced RCA: 1.65 V(RMS)
  • Output Voltage Balanced XLR: 3.25 V(RMS)
  • ADC: 6.144 MHz oversampling dual per channel
  • DAC: 6.144 MHz oversampling dual per channel

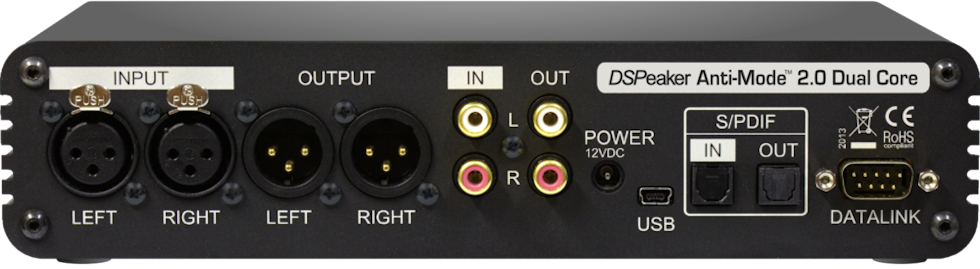

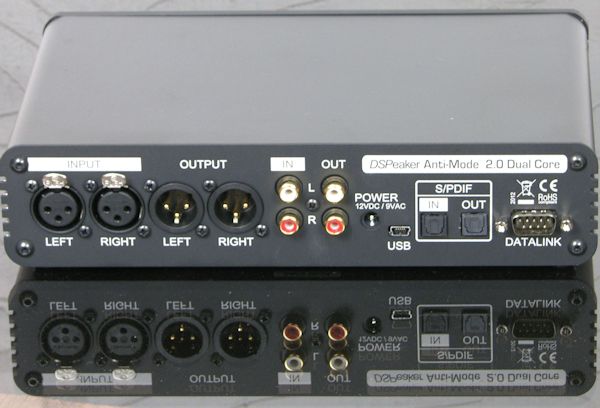

Connections
  • 2 x RCA inputs
  • 2 x XLR inputs
  • 2 x RCA outputs
  • 2 x XLR outputs
  • Toslink S/PDIF digital input
  • Toslink S/PDIF digital output
  • USB
  • Datalink
  • Microphone jack
  • 12VDC/9VAC power connector
