| Designed
And Manufactured In The UK |
|
|
|
|
The

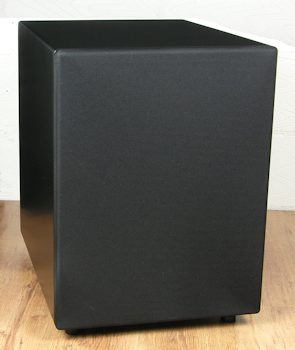

New and Awesome Monolith Plus -FF Subwoofer 500W RMS (1000W Peak)12"
Ported Reflex - £645.45
|
| |
|
Black
|
|
|
|
|
|
Black
Ash
|
|
|
|
|
|
Light
Oak
|
|
|
|
|
| |
|
|
|
|
Please
note that

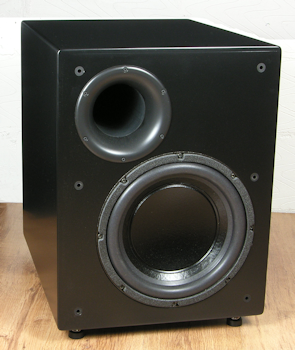

the feet fitted to the Monolith Plus -FF in the picture above
are the M8 SuperSpikes, these do not come fitted as standard
and will need to be purchased separately. SuperSpikes can
be found on our website HERE
|
| |
Cherry
|
| |
|
| |
Gloss
Black
|
| |
|
| |
Mahogany
|
| |
|
| |
|
|
|
| |
| Introduction:-Introduction:- We are pleased to announce the introduction of the latest version of the Monolith Plus subwoofer. Working with our speaker manufacturer we have designed what we think is a better more dynamic loudspeaker that will improve the overall performance of the Monolith Plus. We have kept the specification as close as possible to the original loudspeaker so as not to lose the musical qualities but have beefed up the speaker to enhance its home cinema pedigree. One of the major upgrades was to reduce the power compression to the voice coil, the engine room of the subwoofer which now has a 3.0" Diameter voice coil and a larger vented pole piece enabling to easily handle whatever content is thrown at it |
| |
| The
Amplifier:-
At
the heart of the Monolith Plus is our B.LAT Amplifier, starting it's
life in the original REL Studio and Stentor subwoofers this amplifier
has been continously refined and now includes an array of features
and controls not found on any other subwoofer in this price range.
Controls include volume adjustment for both high and low level inputs,
low pass frequency contour 40 to 120Hz and a continous phase adjustment.
With all these functions avalible to hand the Monolith Plus amplifier
will allow the end user varied connection options and ease of fine
tuning. This amplifier is built here at our UK factory and is rated
at 500W RMS and 1000W RMS peak dynamic. |
| |
The
Monolith Plus amplifier hand built by B.K. Electronics
|
|
| |
| The
Cabinet:- Out of necessity the cabinet has to be large after all
we are designing a high SPL and low distortion subwoofer. The cabinet
has to be strong, rigid and not colour the sound. So, it's made from
25mm MDF and critically braced. The port has a 100mm internal diameter
and is flared both ends to further eliminate port noise. |
| |
|
The
Flared Port
|
|
The
Superb Drive Unit Front
|
|
and
Back
|
|
|
|
|
|
|
|
| |
| Drive
Unit:- A
300mm / 12" twin magnet drive unit to increase linear excursion,
a cast basket for a solid uncoloured projection of sound without ringing
and vented pole piece to help reduce power compression |
| |
| Coil
Construction |
Copper
Voice Coil
|
|
Coil
Former |
Polymide
Former
|
| Magnet
Composition |
Double
Stacked 80oz. ferrite magnets
|
|
Core
Details |
Vented
and extended Core
|
| Basket
Materials |
12-spoke
die-cast aluminium Basket
|
|
Cone
Composition |
Kevlar-reinforced
paper cone
|
| Cone
Edge Technology |
Foam
cone edge
|
|
Dust
Cap Coposition |
Dual
inverted dust caps
|
|
| |
| Specifications |
| |
| System
Type: 95 Litre reflex tuned to 20Hz, cabinet manufactured
from veneered 25mm MDF and Critically braced |
| |
| Distortion:
5% 102dB @ 20Hz |
| |
| Frequency
Response at -3dB: 20Hz / In Room at 15Hz |
| |
| Amplifier
Input / Output Impedance: High Level 100K - Low Level 10K
- Balanced 10K |
| |
| Gain
Control Range: 80dB |
| |
| Drive
Unit Impedance: 4 Ohm |
| |
| Mains
Input: 230V / 50Hz |
| |
| Dimensions:
560D
X 540H x 420W |
| |
| Weight:
46.0kg
|
| |
| Finishes:
See
Below |
| Features |
- 2
Years Warranty
- True
500W continuos discrete Mosfet amplifier
- Truly
hand built in Great Britain, when we claim hand built we
mean hand built, as there are no SMD components or other
automatic placement devices.
- Forward
Firing 300mm (12")
- Continuously
variable frequency control
- Audiophile
grade toroidal transformers
- Gas
Tight Neutrik connection for long term consistency of sound
quality
- Separate
controls for high and low-level input adjustment
- Simultaneous
connection of high and low level sources
- Balanced
Inputs
- Thermal
Protection
- Anti
Thump
- ASP
automatic speaker protection audibly transparent driver
protection
- 6
x 16A output devices for effortless current control
- IEC
Power Socket
- Doubled
flared port for reduced port noise
 |
|
Click
here for the user manual |
|
|
| |
 |
