The New and Awesome Monolith Subwoofer 300W RMS (600W Peak) 12" Ported Reflex - £449.95

Black


Black Ash








The Monolith receives a 5 Star Best Buy.. Full review HERE





Adam Rayner concludes:-

This subwoofer can be considered an outstanding buy maybe even the best value for money currently in domestic electronics. It comes recommended, without caveat


Light Oak


Mahogany




With a genuine in room response of 15Hz @ -3dB

Introduction:- Since we introduced the XLS200 our compact high power subwoofer, it has become apparent that there is a need for a budget high power, high SPL and low distortion subwoofer at a realistic price, with this in mind the Monolith was born. Designed from the speaker upwards the Monolith represents a significant saving in price vs performance and at a smidge under £400 we are offering a serious subwoofer.

The Amplifier:- At the heart of the Monolith is our B.LAT Amplifier, starting it's life in the original REL Studio and Stentor subwoofers this amplifier has been continously refined and now includes an array of features and controls not found on any other subwoofer in this price range. Controls include volume adjustment for both high and low level inputs, low pass frequency contour 40 to 120Hz and a continous phase adjustment. With all these functions avalible to hand the Monolith Plus amplifier will allow the end user varied connection options and ease of fine tuning. This amplifier is built here at our UK factory and is rated at 300W RMS and 600W RMS peak dynamic.


The Monolith amplifier hand built by B.K. Electronics








The Cabinet:- Out of necessity the cabinet has to be large after all we are designing a high SPL and low distortion subwoofer. The cabinet has to be strong, rigid and not colour the sound. So, it's made from 25mm MDF and critically braced. The port has a 100mm internal diameter and is flared both ends to further eliminate port noise.

The Flared Port

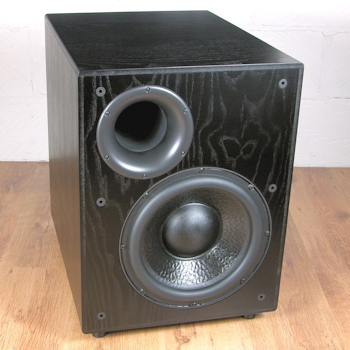

The Superb Drive Unit Front

and Back



Drive Unit:- A 300mm / 12" twin magnet drive unit to increase linear excursion, a cast basket for a solid uncoloured projection of sound without ringing and vented pole piece to help reduce power compression

Specifications

System Type: 95 Litre reflex tuned to 20Hz, cabinet manufactured from veneered 25mm MDF and Critically braced

Distortion: 5% 102dB @ 20Hz

Frequency Response at -3dB: 20Hz / In Room at 15Hz

Amplifier Input / Output Impedance: High Level 100K - Low Level 10K - Balanced 10K

Gain Control Range: 80dB
Drive Unit Impedance: 4 Ohm
Mains Input: 230V / 50Hz

Dimensions: 560D X 540H x 420W

Weight: 42.75kg

Finishes: See Below
Features
  • 2 Years Warranty
  • True 300W continuos discrete Mosfet amplifier
  • Truly hand built in Great Britain, when we claim hand built we mean hand built, as there are no SMD components or other automatic placement devices.
  • Forward Firing 300mm (12")
  • Continuously variable frequency control
  • Audiophile grade toroidal transformers
  • Gas Tight Neutrik connection for long term consistency of sound quality
  • Separate controls for high and low-level input adjustment
  • Simultaneous connection of high and low level sources
  • Balanced Inputs
  • Thermal Protection
  • Anti Thump
  • ASP automatic speaker protection audibly transparent driver protection
  • 4 x 16A output devices for effortless current control
  • IEC Power Socket
  • Doubled flared port for reduced port noise

Only £449.95 Qty : Monolith Black Check out


Only £449.95 Qty : Monolith Light Oak Check out


Only £449.95 Qty : Monolith White Check out


Only £449.95 Qty : Monolith Cherry Check out

Only £449.95 Qty : Monolith Black Ash Check out


Only £489.95 Qty : Monolith Walnut Check out

Only £539.95 Qty : Monolith Gloss Black Check out


Only £489.95 Qty : Monolith Mahogany Check out

Only £539.95 Qty : Monolith Gloss White Check out


Accessories
The Monolith comes complete with the following "FREE" accessories
Spikes 8mm
Mains Lead
5M High Level Lead
5M Phono to Phono
