Modules


Ref. No  Description Price (Inc. UK V.A.T.)

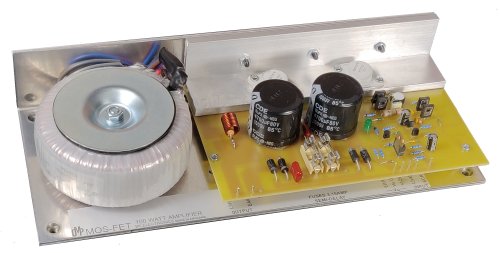

MF100 100W Mosfet Module £49.36


Hand Built In The UK
FEATURES
  • Built In power supply
  • toroidial mains transformer
  • Power ratings in R.M.S.
  • Outputs ready to fit B.K's L.E.D. Vu Meters
  • Advanced Mosfets Design


Qty : MF100 STD
Checkout

Qty : MF100 PEC
Checkout




Specifications


R.M.S. Watts into 4 Ohms
115 W
R.M.S. Watts into 8 Ohms
105 W
3dB Power Bandwidth
1Hz - 100Khz(STD)
1Hz - 50Khz(PEC)
Damping Factor
>300
Slew Rate
45/uS
Full Power t.h.d.
0.01%
T.h.d. Typical
0.002%
Input Sensitivity
500mV(STD)



775mV(PEC)
Input Impedance
10K Ohms
S/N Ratio
110dB
Vu Metering
775mV at rated output
into 10K Ohm

Power Requirements - Supply

240V AC 50 - 60Hz
Weight
2.7Kg
Size - Depth
300 x 127 x 80mm

Vu Meter £12.95
  Vu Meter Compatible with our five amplifier modules OMP MF100 to MF1000. A very accurate visual display employing 11 Led's (7Green 4 Red) plus an additional on/off indicator. Sophisticated logic control for very fast rise and decay times. The front is made from perspex and is raised so as to fit in a panel cut out measuring 82mm x 44.



Qty : VU Meter
Checkout
