Ref. No  Description Price (Inc. UK V.A.T.)

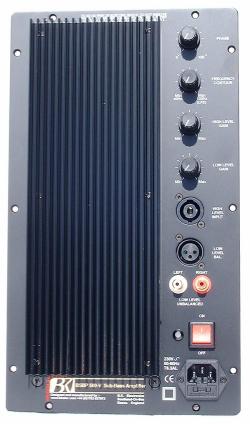

BSBPV 500 500W Active Sub Bass Panel With Eq
£240.06


Qty : BSBPV500
Checkout

Features
  • Phase Shift Continuously variable 0 - 180Deg
  • 500W R.M.S. Into 4 Ohms
  • High and Low level inputs with separate gain controls
  • Balanced Input
  • Upper roll off is continuously variable between 40Hz and 120Hz
  • Filter Bypass switch, for use with sub outs from processors
  • +6dB Eq selectable at 15,20,25 and 30Hz can be by-passed for flat response to -3dB at 3Hz
  • Airtight construction
  • 5 Second Anti Thump Delay
  • Thermal Protection
  • ASP Automatic Speaker Protection
  • Short Circuit Protection
  • 4mm Thick Aluminium Front Panel
  • Complete with Mains, High Level and Low Level Leads

User Instructions

Specification

Output Power
BSBP 500/4
500W RMS Into 4 Ohms
Frequency Response
Filtered
3Hz to 40Hz-120Hz
Unfiltered
3Hz to 1kHz
S/N
>100dB A Weighted
THD
0.01% Typ
Low Level Sens
100mV
High Level Sens
1.5V
Balanced Input Sens
350mV
Size
H355 x W203 x D145mm
Weight
7.16Kg
Mains Voltage **
110/230V - 50/60Hz

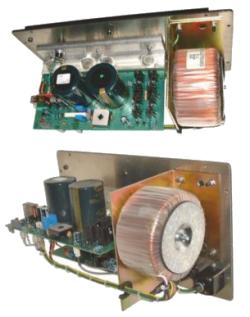

The BSBPV 500 is the newest most versatile sub bass amplifier panel from BK Electronics. It offers 500 Watts RMS (1000 Peak) into a four ohm load without effort and comes packed with the features and quality people have come to expect from BK. The BSBPV 500 incorporates our "D" type lateral mosfet technology which are designed for audio and not to be confused with switching transistors, coupled to our tried and tested filter to produce a panel that is compact but powerful. Stunningly over engineered this panel oozes quality and we consider this to be our best panel yet.
User Selectable Eq

Please note that the Eq can be by-passed to give a flat response down to -3dB at 3Hz and the adjustable filter can be by-passed to be -6dB at 1kHz for LFE out from an AV processor. The filter is adjustable from 40Hz to 120Hz at 12dB / Oct there is also a second blocking filter at approx 140Hz which is also 12dB / Oct. As can be seen by the graph this gives a maximum roll off at 150Hz to 300Hz of 18dB / Oct and at 300Hz to 600Hz of 24dB/Oct
