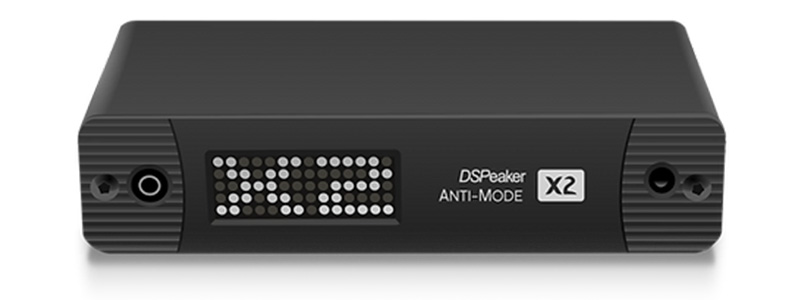

DSPEAKER ANTI-MODE X2 |
Room Correction and Equalizer DSP |
| |
|
| |
Compact yet extremely powerful, the DSPeaker Anti-Mode X2 presents itself as a DSP to perform acoustic room correction and equalization tasks with great efficiency. It features the brand new Anti-Mode™ 3 algorithm, capable of automatically optimizing your main speakers and an optional subwoofer to your acoustic environment. This makes it simple and quick to improve the sound quality of an existing HiFi system.
A fully customizable tone control feature is also available, in addition to an advanced digital crossover and subsonic filter. Most features are adjustable in real time using the included remote control. Several sound profiles are also available, allowing quick access to previously saved settings. |
| |
An efficient room correction |
| |
In order to limit or even cancel the impact of the multiple defects that a listening room can present on the quality of reproduction of an audio system, the DSPeaker Anti-Mode X2 proposes a powerful acoustic room correction system. It uses a microphone calibration system to solve problems such as reverberation, echo, sound reflection, and speaker/subwoofer mismatch, in order to allow your audio system to really shine. This correction is fully automatic and transparent. |
| |
Tone control |
| |
In addition to its acoustic correction function, the DSPeaker Anti-Mode X2 provides a tone control that allows you to manually adjust the bass, midrange and treble levels. These settings can be saved in three sound profiles that can be accessed at any time. |
| |
Easy integration |
| |
The DSPeaker Anti-Mode X2 is placed directly between your sources and your amplifier, preamplifier or active speakers. It offers an adapted connectic, composed of a combined RCA stereo/coaxial input, an optical Toslink input and a USB-C port. The digital section supports, thanks to its integrated DAC, audio streams up to PCM 24bit 192kHz.
Concerning the outputs, we find stereo RCA and a subwoofer output. The RCA output offers the possibility of being configured on a variable level for a direct connection with a power amplifier. |
| |
|
| |
| Specifications |
| Product type |
Room correction DSP |
| Inputs |
1x Stereo RCA / SPDIF Coaxial ccombo
1x Optical Toslink
1x USB-C
1x Microphone input |
| Outputs |
1x Stereo RCA
1x Subwoofer (RCA) |
| Supported sampling rates |
USB : PCM up to 24bit 96kHz
SPDIF : PCM up to 24bit 192kHz |
| Frequency range (analog to analog) |
5Hz-22kHz |
| Analog input level |
2.3Vrms (max) |
| Analog input SNR |
100dB |
| Analog input THD (-6dB) |
< 0.002% |
| Line output level |
2.2Vrms (max) |
| Line output SNR |
107dB |
| Line output THD (-6dB) |
< 0.0015% |
| Subwoofer output level |
2.3Vrms (max) |
| Subwoofer output SNR |
100dB |
| Subwoofer output THD (-6dB) |
< 0.03% |
|
|
| General |
| Supply voltage |
12VDC |
| Consumption |
1.5W |
| Standby consumption |
0.1W |
| Dimensions (L*P*H) |
126*80*28mm |
| Weight |
300g |
| Color |
Black |
| Package |
1* DSPeaker Anti-Mode X2
1* Measuring microphone
1* Remote control
1* Power supply |
Anti-Mode X2 Manual HERE
|
|
| |
| |

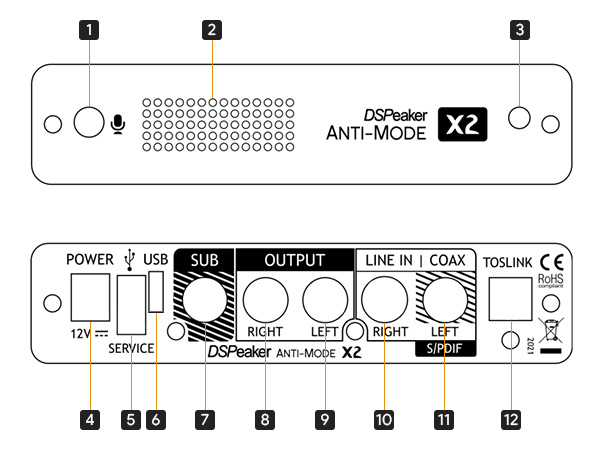

1 - Microphone I/P |
|
2 - Display |
|
3 - IR Receiver |
|
4 - 12V DC Input |
|
| |
5 - USB-A input (for firmware update) |
|
6 - USB-C audio input |
|
7 - Subwoofer output |
|
8 - Right channel RCA output |
|
| |
9 - Left channel RCA output |
|
10 - Right channel RCA input |
|
11 - Left channel RCA input / Coaxial input |
|
12 - Optical input |
|
|
